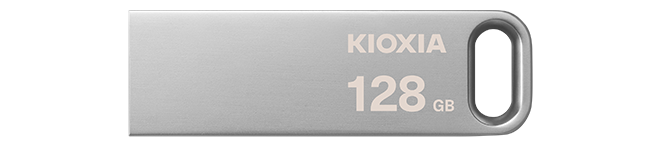

TransMemory U366 USB Flash Drive

  • 16GB, 32GB, 64GB, 128GB
  • 200 MB/s (128GB); 100 MB/s (16GB, 32GB, 64GB)
    (Max read speed may not be displayed on the product package.)
  • File Transfer on PC and Mac

Features

  • stylish, metal housing compliments design-conscious notebook PCs and goes wherever you go, in style
  • At 39mm long, 12.2mm wide and 4.5mm thick and up to 128GB, the U366 easily goes where you go
  • U366’s key ring will let you easily pair it up with your house/car keys
  • delivers a read transfer speed up to 200 MB/s
Capacity 16GB, 32GB, 64GB, 128GB
Approximate Usable Capacity 14.4GB, 28.8GB, 57.6GB, 115.2GB
Interface USB 3.2 Gen 1 SuperSpeed compatible / USB 2.0 high-speed compatible*3
Dimension (LxWxH)  39.0 x 12.2 x 4.5 mm
Weight  Approx. 6 g
Power Supply  USB bus-power
Max Read Speed 200 MB/s (128GB), 100 MB/s (16GB, 32GB, 64GB)
Operating Temperature 0 ℃ to 50 ℃ (no condensation)
Storage Temperature  -20 ℃ to 60 ℃
Certifications RoHS compliant
Compatibility Models equipped with the following OS, and the Type-A USB interface as a standard feature; Compatible with Windows 11, macOS Monterey 12, macOS Ventura 13, macOS Sonoma 14, macOS Sequoia 15
(As of October 15, 2025)
Services and Support 5-year limited warranty

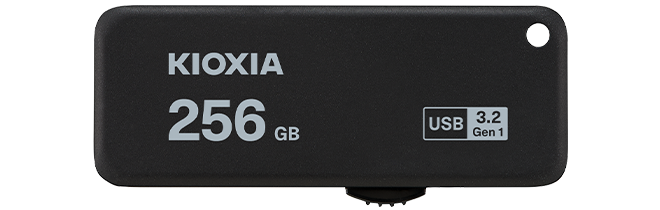

TransMemory U365 USB Flash Drive

  • 32GB, 64GB, 128GB, 256GB
  • 150MB/s
  • File Transfer on PC and Mac

Features

  • Simple shapes without ornate decorations have lasting appeal. The classic matt black body gives subdued and sophisticated feel to this USB flash drive. Its capless, sliding retractable design provides convenience.
  • With capacities up to 256GB, the TransMemory U365 drives are tiny USB 3.2 Gen 1 flash drives with space to save and organize hundreds of high-resolution music files and hours of video files across various devices
  • deliver up to 150 MB/s*1 of read transfer speed

Capacity 32GB, 64GB, 128GB, 256GB
Approximate Usable Capacity 28.8GB, 57.6GB, 115.2GB, 230.4GB
Interface USB 3.2 Gen 1 SuperSpeed compatible / USB 2.0 high-speed compatible*3
Dimension (LxWxH) 55.0 x 21.4 x 8.5 mm (excluding slide tab)
Weight Approx. 9 g
Power Supply USB bus-power
Max Read Speed 150 MB/s
Operating Temperature 0 ℃ to 50 ℃ (no condensation)
Storage Temperature -20 ℃ to 60 ℃
Certifications RoHS compliant
Compatibility Models equipped with the following OS, and the Type-A USB interface as a standard feature; Compatible with Windows 11, macOS Monterey 12, macOS Ventura 13, macOS Sonoma 14, macOS Sequoia 15
(As of October 15, 2025)
Services and Support 5-year limited warranty

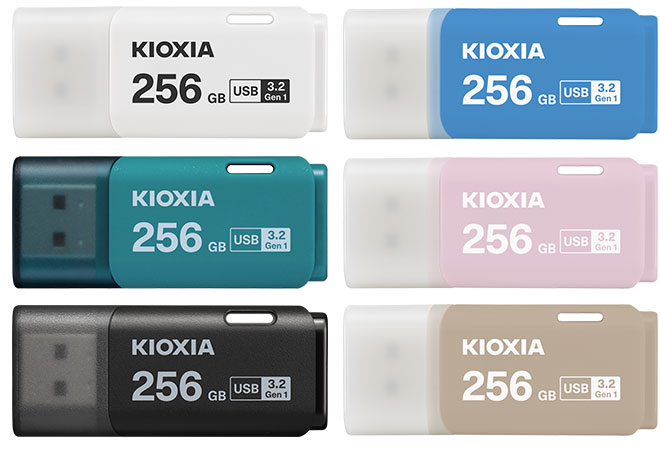

TransMemory U301 USB Flash Drive

  • White: 16GB, 32GB, 64GB, 128GB, 256GB
  • Light blue: 64GB, 128GB, 256GB
  • Black: 64GB, 128GB, 256GB
  • Blue: 128GB, 256GB
  • Pink: 128GB, 256GB
  • Warm Gray: 128GB, 256GB
  • File Transfer on PC and Mac

Features

  • offer more color possibilities. Choose your favorite shade and go in style
  • pack in a lot of space – up to 256GB of storage
  • designed to go wherever you go
Capacity White: 16GB, 32GB, 64GB, 128GB, 256GB Light blue: 64GB, 128GB, 256GB Black: 64GB, 128GB, 256GB Blue: 128GB, 256GB Pink: 128GB, 256GB Warm Gray: 128GB, 256GB
Approximate Usable Capacity Light blue: 64GB, 128GB, 256GB Black: 64GB, 128GB, 256GB Blue: 128GB, 256GB Pink: 128GB, 256GB Warm Gray: 128GB, 256GB
Interface USB 3.2 Gen 1 SuperSpeed compatible / USB 2.0 high-speed compatible*3
Dimension (LxWxH)  51.4 x 21.4 x 8.4 mm (including cap)
Weight Approx. 8 g
Power Supply  USB bus-power
Operating Temperature 0 ℃ to 50 ℃ (no condensation)
Storage Temperature  -20 ℃ to 60 ℃
Certifications RoHS compliant
Compatibility Models equipped with the following OS, and the Type-A USB interface as a standard feature. Compatible with Windows 11, macOS Monterey 12, macOS Ventura 13, macOS Sonoma 14, macOS Sequoia 15 (As of October 15, 2025)
Services and Support 5-year limited warranty

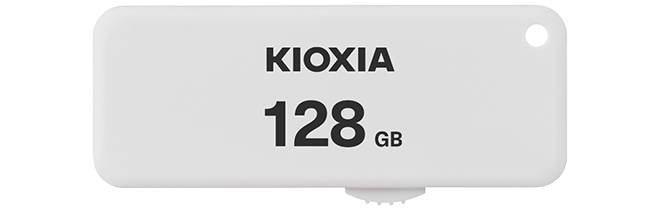

TransMemory U203 USB Flash Drive

  • 16GB, 32GB, 64GB, 128GB
  • File Transfer on PC and Mac

Features

  • Simply push the sliding nob to reveal the connector. When you are done, just retract the connector when it’s not in use.
  • up to 128GB of storage
Capacity 16GB, 32GB, 64GB, 128GB
Approximate Usable Capacity 14.4GB, 28.8GB, 57.6GB, 115.2GB
Interface USB 2.0 high-speed compatible
Dimension (LxWxH) 55.0 x 21.4 x 8.5 mm (excluding slide tab)
Weight Approx. 9 g
Power Supply USB bus-power
Operating Temperature 0 ℃ to 50 ℃ (no condensation)
Storage Temperature -20 ℃ to 60 ℃
Certifications RoHS compliant
Compatibility Models equipped with the following OS, and the Type-A USB interface as a standard feature. Compatible with Windows 11, macOS Monterey 12, macOS Ventura 13, macOS Sonoma 14, macOS Sequoia 15
(As of October 15, 2025)
Services and Support 5-year limited warranty

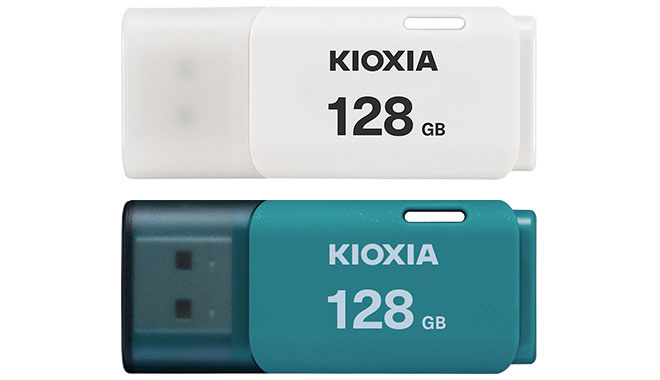

TransMemory U202 USB Flash Drive

  • White: 16GB 32GB 64GB 128GB
  • Light blue: 16GB 32GB 64GB 128GB
  • File Transfer on PC and Mac

Features

  • TransMemory U202 USB flash drives’ simple body mean that this storage goes wherever you go, everyday
  • up to 128GB of storage
Capacity White: 16GB, 32GB, 64GB, 128GB
Light blue: 16GB, 32GB, 64GB, 128GB
Approximate Usable Capacity White: 14.4GB, 28.8GB, 57.6GB, 115.2GB
Light blue: 14.4GB, 28.8GB, 57.6GB, 115.2GB
Interface USB 2.0 high-speed compatible
Dimension (LxWxH) 51.4 x 21.4 x 8.4 mm (including cap)
Weight Approx. 8 g
Power Supply USB bus-power
Operating Temperature 0 ℃ to 50 ℃ (no condensation)
Storage Temperature -20 ℃ to 60 ℃
Certifications RoHS compliant
Compatibility Models equipped with the following OS, and the Type-A USB interface as a standard feature. Compatible with Windows 11, macOS Monterey 12, macOS Ventura 13, macOS Sonoma 14, macOS Sequoia 15
(As of October 15, 2025)
Services and Support 5-year limited warranty

EXCERIA HIGH ENDURANCE G2 microSD Memory Card

  • 64GB, 128GB, 256GB, 512GB
  • 100/50 MB/s

  • Speed Class: Video Speed Class 30 UHS Speed Class 3 Speed Class 10

  • Application Performance Class: Application Performance Class 1
  • Dashboard/Surveillance camera recording

Features

  • Suitable for dashboard, surveillance, action and digital camera
  • Suitable for smartphone
  • Max Read Speed 100 MB/s
  • Max Write Speed 50 MB/s
  • Temperature Durability
  • Waterproof
  • X-Ray Proof
  • Shock Proof
  • ESD Immunity
  • Overheating/Ignition Prevention
  • For Full HD, 4K, 8K Video Recording
  • Android Compatible
  • Cumulative Recording Time (High Endurance)
  • For High-Speed Continuous Shooting (UHS-II)
Capacity 64GB, 128GB, 256GB, 512GB (microSDXC)
Approximate Usable Capacity 57.6GB, 115.2GB, 230.4GB, 460.8GB
Interface UHS-I
Dimension (LxWxH) 15.0 x 11.0 x 1.0 mm
Weight Approx. 0.3 g
Max Read Speed 100 MB/s
Max Write Speed 50 MB/s
UHS Speed Class U3
Video Speed Class V30
SD Speed Class C10
Application Performance Class A1
Endurance 512GB: 17,000 hours (4K)
256GB: 40,000 hours (Full HD)
128GB: 20,000 hours (Full HD)
64GB: 10,000 hours (Full HD)
Operating Temperature -25 ℃ to 85 ℃ (no condensation)
Certification RoHS compliant
Waterproof Compatible with IPX7
X-ray Proof ISO7816-1 compliant
Shock Proof Passed 5 meter drop test
Overheating/Ignition Prevention Electrical fuse is mounted
ESD Immunity Resistant to electrostatic discharge
Target Applications Dashboard cameras, surveillance cameras, and any other steady video recording devices
64GB and Over Compatible with microSDXC supporting host devices.
Services and Support 5-year limited warranty (512GB)
3-year limited warranty (64GB, 128GB, 256GB)
Included SD Adapter LADP1

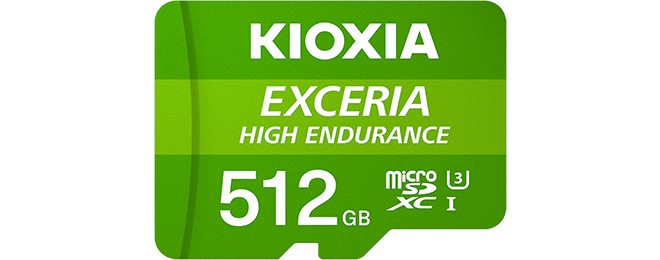

EXCERIA HIGH ENDURANCE microSD Memory Card

  • 32GB, 64GB, 128GB, 256GB, 512GB
  • Max Read/Write Speed: 100/85 MB/s (256GB, 512GB); 100/65 MB/s ; 64GB, 128GB); 100/30 MB/s (32GB)

  • Speed Class: Video Speed Class 30 UHS Speed Class 3 Speed Class 10 (64GB, 128GB, 256GB, 512GB); Video Speed Class 10 UHS Speed Class 1 Speed Class 10 (32GB)

  • Application Performance Class: Application Performance Class 1
  • Surveillance/Dashboard camera recording

Features

  • Suitable for dashboard, surveillance, action and digital camera
  • Suitable for smartphone
  • Max Read Speed 100 MB/s
  • Max Write Speed 50 MB/s
  • Temperature Durability
  • Waterproof
  • X-Ray Proof
  • Shock Proof
  • ESD Immunity
  • Overheating/Ignition Prevention
  • For Full HD, 4K, 8K Video Recording
  • Android Compatible
  • Cumulative Recording Time (High Endurance)
  • For High-Speed Continuous Shooting (UHS-II)
Capacity 32GB (microSDHC), 64GB, 128GB, 256GB, 512GB (microSDXC)
Approximate Usable Capacity 28.8GB, 57.6GB, 115.2GB, 230.4GB, 460.8GB
Interface UHS-I
Dimension (LxWxH) 15.0 x 11.0 x 1.0 mm
Weight Approx. 0.3 g
Max Read Speed 100 MB/s
Max Write Speed 85 MB/s (256GB, 512GB)
65 MB/s (64GB, 128GB)
30 MB/s (32GB)
UHS Speed Class U3 (64GB, 128GB, 256GB, 512GB)
U1 (32GB)
Video Speed Class V30 (64GB, 128GB, 256GB, 512GB)
V10 (32GB)
SD Speed Class C10
Application Performance Class A1
Endurance 512GB: 17,000 hours (4K)
256GB: 40,000 hours (Full HD)
128GB: 20,000 hours (Full HD)
64GB: 10,000 hours (Full HD)
32GB: 5,000 hours (Full HD)
Operating Temperature -25 ℃ to 85 ℃ (no condensation)
Certification RoHS compliant
Waterproof Compatible with IPX7
X-ray Proof ISO7816-1 compliant
Shock Proof Passed 5 meter drop test
Overheating/Ignition Prevention Electrical fuse is mounted
ESD Immunity Resistant to electrostatic discharge
Target Applications Dashboard cameras, surveillance cameras, and any other steady video recording devices
32GB and Under Compatible with microSDHC and microSDXC supporting host devices corresponding to FAT32 file system.
64GB and Over Compatible with microSDXC supporting host devices.
Services and Support 5-year limited warranty (512GB)
3-year limited warranty (32GB, 64GB, 128GB, 256GB)
Included SD Adapter LADP1
Copyright Protection (CPRM) Supported

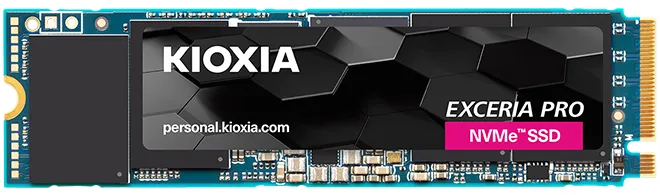

EXCERIA PRO

  • Capacity: 1TB; 2TB
  • Max Sequential Read/Write Speed: 7,300/6,400 MB/s
  • Max Random Read/Write Speed: 1,000,000/1,100,000 IOPS(1TB); 800,000/1,300,000 IOPS(2TB)
  • Usage: Client desktops and laptops

Features

  • up to 7,300 MB/s of sequential read speed and up to 6,400 MB/s sequential write speed
  • Featuring a thin, single-sided M.2 2280 form factor, reducing additional cable clutter for a sleeker and an easy system upgrade
  • delivers powerful performance utilizing the PCIe® 4.0 and NVMe™ 1.4 technology
  • built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience
  • SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more
Capacity / dimensions
Capacity 1TB, 2TB
Form Factor M.2 Type 2280-S2-M
Interface PCI Express® Base Specification Revision 4.0 (PCIe®)
Flash Memory type BiCS FLASH™ TLC
Interface Maximum Speed 64 GT/s (PCIe® Gen4x4)
Dimension (Max: LxWxH) 80.15 x 22.15 x 2.23 mm
Interface Protocol NVM Express™ Base Specification 1.4
Weight 1TB: 7.6 g (typ.)
2TB: 8.0 g (typ.)
Performance
Max Sequential Read Speed 7,300 MB/s
Max Sequential Write Speed 6,400 MB/s
Max Random Read Speed 1TB: 1,000,000 IOPS
2TB: 800,000 IOPS
Max Random Write Speed 1TB: 1,100,000 IOPS
2TB: 1,300,000 IOPS
Endurance: TBW 1TB: 400 TB
2TB: 800 TB
MTTF 1.5 million hours
Operating environment / protection performance
Operating Temperature 0 ℃ (Ta) to 85 ℃ (Tc)
Storage Temperature -40 ℃ to 85 ℃
Certification RoHS compliant
Shock Resistance 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
Supply Voltage 3.3 V ±5 %
Power Consumption PS3: 50 mW (typ.)
PS4: 5 mW (typ.)
Power Consumption (Active) 8.9 W (typ.)
Compatibility
Connector Type M.2 M key Socket
Target Applications Client desktops and laptops
Others
Services and Support Up to 5-year manufacturer’s warranty
Performance Optimization TRIM, Idle Time Garbage Collection

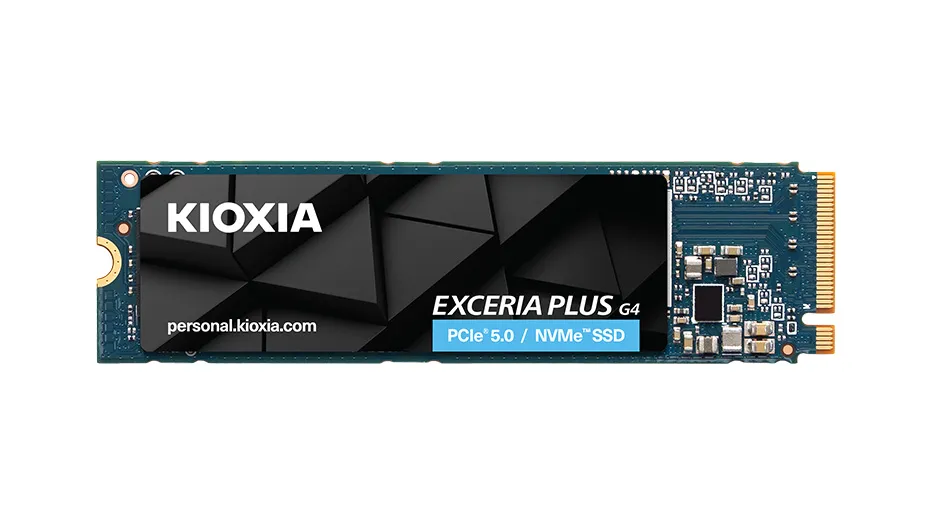

EXCERIA PLUS G4

  • Capacity: 1TB; 2TB
  • Max Sequential Read/Write Speed: 10,000/7,900 MB/s (1TB); 10,000/8,200 MB/s (2TB)
  • Max Random Read/Write Speed: 1,300,000/1,400,000 IOPS
  • Usage: Client desktops and laptops

Features

  • delivers excellent transfer speeds of up to 10,000MB/s for sequential reads and 8,200MB/s for sequential writes
  • delivers significantly improved performance without excessive energy or cooling requirements
  • feature innovative product labels to enhance heat dissipation for advanced performance stability
  • built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience
  • SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more
Capacity / dimensions
Capacity 1TB, 2TB
Form Factor M.2 Type 2280-S3-M
Interface PCI Express® Base Specification Revision 5.0 (PCIe®)
Flash Memory type BiCS FLASH™ TLC
Interface Maximum Speed 128 GT/s (PCIe® Gen5x4)
Dimension (Max: LxWxH) 80.15 x 22.15 x 2.38 mm
Interface Protocol NVM Express™ Base Specification 2.0c
Weight 1TB: 5.6 g (typ.)
2TB: 5.7 g (typ.)
Performance
Max Sequential Read Speed 10,000 MB/s
Max Sequential Write Speed 1TB: 7,900 MB/s
2TB: 8,200 MB/s
Max Random Read Speed 1,300,000 IOPS
Max Random Write Speed 1,400,000 IOPS
Endurance: TBW 1TB: 600 TB
2TB: 1,200 TB
MTTF 1.5 million hours
Operating environment / protection performance
Operating Temperature 0 ℃ (Ta) to 85 ℃ (Tc)
Storage Temperature -40 ℃ to 85 ℃
Certification RoHS compliant
Shock Resistance 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration 25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis
Supply Voltage 3.3 V ±5 %
Power Consumption PS3: 50 mW (typ.)
PS4: 5 mW (typ.)
Power Consumption (Active) 5.3 W (typ.)
Compatibility
Connector Type M.2 M key Socket
Target Applications Client desktops and laptops
Others
Services and Support Up to 5-year manufacturer’s warranty
Performance Optimization TRIM, Idle Time Garbage Collection, Host Memory Buffer

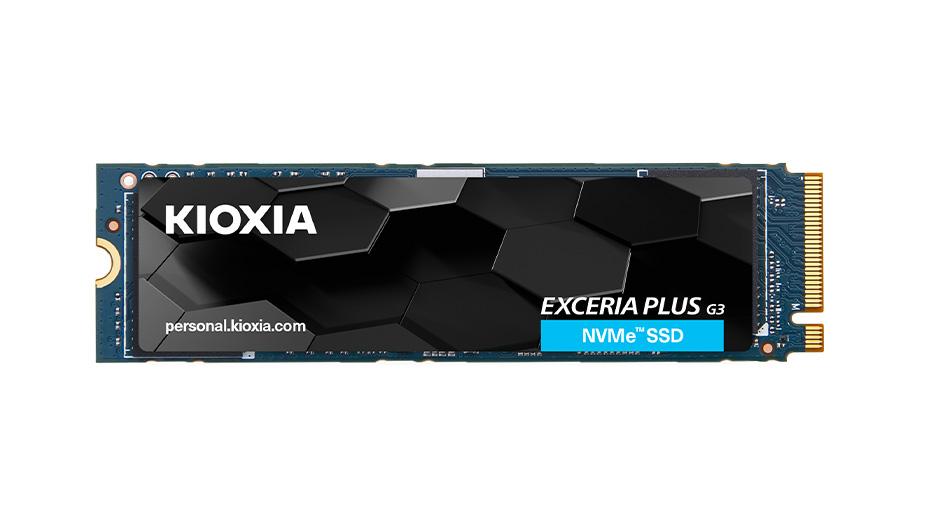

EXCERIA PLUS G3

  • Capacity: 1TB; 2TB
  • Max Sequential Read/Write Speed: 5,000/3,900 MB/s
  • Max Random Read/Write Speed: 770,000/950,000 IOPS(1TB); 680,000/950,000 IOPS(2TB)
  • Usage: Client desktops and laptops

Features

  • compatible with PCIe® 4.0 and delivers exceptional transfer speeds of up to 5,000 MB/s for sequential reads and 3,900 MB/s for sequential writes
  • Featuring a space-saving, single-sided M.2 2280 form factor, the EXCERIA PLUS G3 SSD series is compatible with a wider range of devices
  • delivers improved performance without cutting corners
  • built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience
  • SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more
Capacity / dimensions
Capacity 1TB, 2TB
Form Factor M.2 Type 2280-S4-M
Interface PCI Express® Base Specification Revision 4.0 (PCIe®)
Flash Memory type BiCS FLASH™ TLC
Interface Maximum Speed 64 GT/s (PCIe® Gen4x4)
Dimension (Max: LxWxH) 80.15 x 22.15 x 2.63 mm
Interface Protocol NVM Express™ Base Specification 1.4
Weight 1TB: 7.0 g (typ.)
2TB: 7.4 g (typ.)
Performance
Max Sequential Read Speed 5,000 MB/s
Max Sequential Write Speed 3,900 MB/s
Max Random Read Speed 1TB: 770,000 IOPS
2TB: 680,000 IOPS
Max Random Write Speed 950,000 IOPS
Endurance: TBW 1TB: 600 TB
2TB: 1,200 TB
MTTF 1.5 million hours
Operating environment / protection performance
Operating Temperature 0 ℃ (Ta) to 85 ℃ (Tc)
Storage Temperature -40 ℃ to 85 ℃
Certification RoHS compliant
Shock Resistance 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
Supply Voltage 3.3 V ±5 %
Power Consumption PS3: 50 mW (typ.)
PS4: 5 mW (typ.)
Power Consumption (Active) 1TB: 4.9 W (typ.)
2TB: 5.3 W (typ.)
Compatibility
Connector Type M.2 M key Socket
Target Applications Client desktops and laptops
Others
Services and Support Up to 5-year manufacturer’s warranty
Performance Optimization TRIM, Idle Time Garbage Collection, Host Memory Buffer

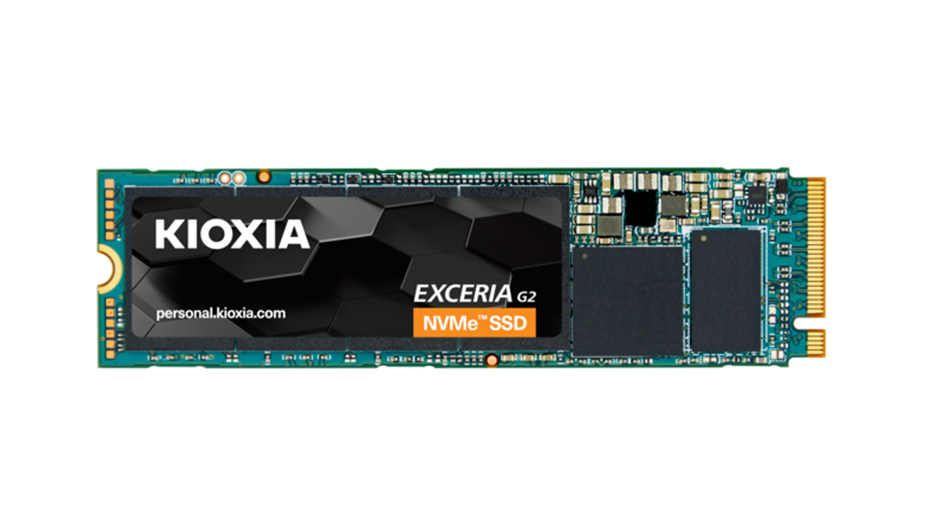

EXCERIA G2

  • Capacity: 500GB; 1TB; 2TB
  • Max Sequential Read/Write Speed: 2,100/1,700 MB/s
  • Max Random Read/Write Speed: 400,000/400,000 IOPS(500GB, 1TB); 360,000/400,000 IOPS(2TB)
  • Usage: Client desktops and laptops

Features

  • delivers balanced performance and value that will transform your system
  • Featuring a thin, single-sided M.2 2280 form factor, the EXCERIA G2 SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade
  • Utilizing the NVMe™ 1.3c technology, EXCERIA G2 SSD series reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance
  • built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience
  • SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more
Capacity / dimensions
Capacity 500GB, 1TB, 2TB
Form Factor M.2 Type 2280-S2-M
Interface PCI Express® Base Specification Revision 3.1a (PCIe®)
Flash Memory type BiCS FLASH™ TLC
Interface Maximum Speed 32 GT/s (PCIe® Gen3x4)
Dimension (Max: LxWxH) 80.15 x 22.15 x 2.23 mm
Interface Protocol NVM Express™ Revision 1.3c
Weight 500GB, 1TB: 6.8 g (typ.) 2TB: 7.1 g (typ.)
Performance
Max Sequential Read Speed 2,100 MB/s
Max Sequential Write Speed 1,700 MB/s
Max Random Read Speed 500GB, 1TB: 400,000 IOPS 2TB: 360,000 IOPS
Max Random Write Speed 400,000 IOPS
Endurance: TBW 500GB: 200 TB 1TB: 400 TB 2TB: 800 TB
MTTF 1.5 million hours
Operating environment / protection performance
Operating Temperature 0 ℃ (Ta) to 85 ℃ (Tc)
Storage Temperature -40 ℃ to 85 ℃
Certification RoHS compliant
Shock Resistance 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
Supply Voltage 3.3 V ±5 %
Power Consumption PS3: 50 mW (typ.) PS4: 5 mW (typ.)
Power Consumption (Active) 500GB, 1TB: 3.5 W (typ.) 2TB: 5.3 W (typ.)
Compatibility
  Connector Type M.2 M key Socket
Target Applications Client desktops and laptops
Others
Services and Support Up to 5-year manufacturer’s warranty
Performance Optimization TRIM, Idle Time Garbage Collection

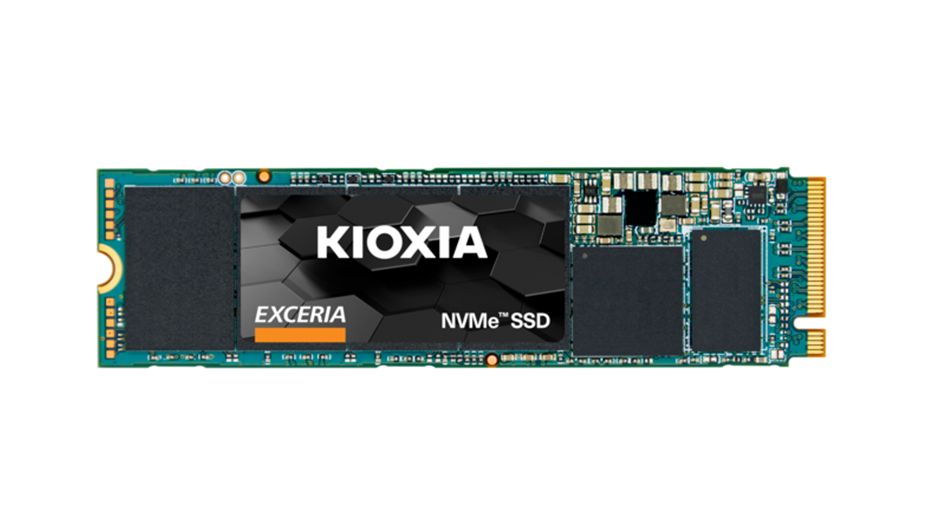

EXCERIA

  • Capacity: 250GB; 500GB; 1TB
  • Max Sequential Read/Write Speed: 1,700/1,200 MB/s(250GB); 1,700/1,600 MB/s(500GB, 1TB)
  • Max Random Read/Write Speed: 200,000/290,000 IOPS(250GB); 350,000/400,000 IOPS(500GB, 1TB)
  • Usage: Client desktops and laptops

Features

  • Featuring a slim and light M.2 2280 form factor, plugs directly into thin notebooks’ motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade
  • reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance
  • built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience
  • SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more
Capacity / dimensions
Capacity 250GB, 500GB, 1TB
Form Factor M.2 Type 2280-S2-M
Interface PCI Express® Base Specification Revision 3.1a (PCIe®)
Flash Memory type BiCS FLASH™ TLC
Interface Maximum Speed 32 GT/s (PCIe® Gen3x4L)
Dimension (Max: LxWxH) 80.15 x 22.15 x 2.23 mm
Interface Protocol NVM Express™ Revision 1.3c
Weight 250GB: 6.0 g (typ.)
500GB, 1TB: 6.9 g (typ.)
Performance
Max Sequential Read Speed 1,700 MB/s
Max Sequential Write Speed 250GB: 1,200 MB/s
500GB, 1TB: 1,600 MB/s
Max Random Read Speed 250GB: 200,000 IOPS
500GB, 1TB: 350,000 IOPS
Max Random Write Speed 250GB: 290,000 IOPS
500GB, 1TB: 400,000 IOPS
Endurance: TBW 250GB: 100 TB
500GB: 200 TB
1TB: 400 TB
MTTF 1.5 million hours
Operating environment / protection performance
Operating Temperature 0 ℃ (Ta) to 85 ℃ (Tc)
Storage Temperature -40 ℃ to 85 ℃
Certification RoHS compliant
Shock Resistance 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
Supply Voltage 3.3 V ±5 %
Power Consumption PS3: 50 mW (typ.)
PS4: 5 mW (typ.)
Power Consumption (Active) 250GB: 3.8 W (typ.)
500GB: 3.9 W (typ.)
1TB: 5.3 W (typ.)
Compatibility
Connector Type M.2 M key Socket
Target Applications Client desktops and laptops
Others
Services and Support Up to 5-year manufacturer’s warranty
Performance Optimization TRIM, Idle Time Garbage Collection

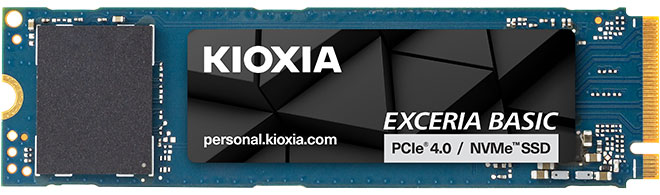

EXCERIA BASIC

  • Capacity: 1TB, 2TB
  • Max Sequential Read/Write Speed: 7,200/6,600 MB/s (1TB); 7,300/6,800 MB/s (2TB)
  • Max Random Read/Write Speed: 1,000,000/1,150,000 IOPS (1TB); 1,000,000/1,250,000 IOPS (2TB)
  • Usage: Client desktops and laptops

Features

  • balance price and performance so you have enough funds left over for other
  • reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance
  • built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting-edge storage experience
  • SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more
Capacity / dimensions
Capacity 1TB, 2TB
Form Factor M.2 Type 2280-S3-M
Interface PCI Express® Base Specification Revision 4.0 (PCIe®)
Flash Memory type BiCS FLASH™ QLC
Interface Maximum Speed 64 GT/s (PCIe® Gen4x4)
Dimension (Max: LxWxH) 80.15 x 22.15 x 2.38 mm
Interface Protocol NVM Express™ Base Specification 2.0d
Weight 5.6 g (typ.)
Performance
Max Sequential Read Speed 1TB: 7,200 MB/s
2TB: 7,300 MB/s
Max Sequential Write Speed 1TB: 6,600 MB/s
2TB: 6,800 MB/s
Max Random Read Speed 1,000,000 IOPS
Max Random Write Speed 1TB: 1,150,000 IOPS
2TB: 1,250,000 IOPS
Endurance: TBW 1TB: 300 TB
2TB: 600 TB
MTTF 1.5 million hours
Operating environment / protection performance
Operating Temperature 0 ℃ (Ta) to 85 ℃ (Tc)
Storage Temperature -40 ℃ to 85 ℃
Certification RoHS compliant
Shock Resistance 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration 25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis
Supply Voltage 3.3 V ±5 %
Power Consumption PS3: 50 mW (typ.)
PS4: 3 mW (typ.)
Power Consumption (Active) 1TB: 3.8 W (typ.)
2TB: 4.3 W (typ.)
Compatibility
Connector Type M.2 M key Socket
Target Applications Client desktops and laptops
Others
Services and Support Up to 5-year manufacturer’s warranty
Performance Optimization TRIM, Idle Time Garbage Collection, Host Memory Buffer

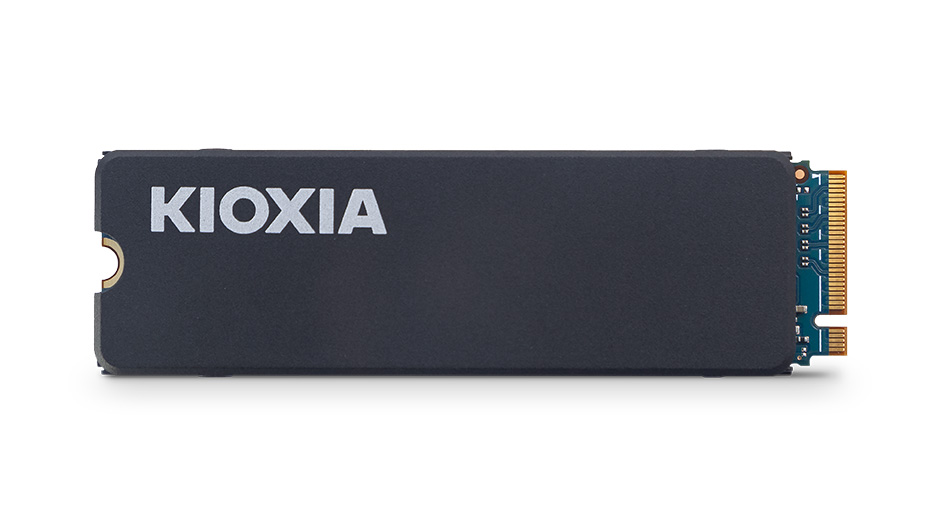

EXCERIA with Heatsink

  • Capacity: 1,024GB; 2,048GB; 4,096GB
  • Max Sequential Read/Write Speed: 6,200/4,900 MB/s (1,024GB, 2,048GB); 6,200/4,800 MB/s (4,096GB)
  • Max Random Read/Write Speed: 850,000/440,000 IOPS (1,024GB); 830,000/450,000 IOPS (2,048GB); 810,000/450,000 IOPS (4,096GB)
  • Usage: Desktop PC and PlayStation5

Features

  • Load levels quicker with up to 6,200 MB/s sequential read performance and download new titles faster with up to 4,900 MB/s of sequential write performance
  • With advanced heat dissipation capabilities, the KIOXIA EXCERIA with Heatsink Series is an excellent choice for gaming systems that need extra cooling during intense gaming sessions
  • offer abundant storage for even the tightest spaces in your go-to PlayStation 5*6 and desktop PC
  • built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience
  • SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more

Capacity / dimensions

Capacity
1,024GB, 2,048GB, 4,096GB

Form Factor
M.2 Type 2280(Key M) with Heatsink

Interface
PCI Express® Base Specification Revision 4.0 (PCIe®)

Flash Memory type
BiCS FLASH™ TLC

Interface Maximum Speed
64 GT/s (PCIe® Gen4x4)

Dimension (Max: LxWxH)
80.65 x 24.70 x 11.20 mm

Interface Protocol
NVM Express™ Base Specification 1.4

Weight
1,024GB, 2,048GB: 45 g (typ.)
4,096GB: 46 g (typ.)

Performance

Max Sequential Read Speed
6,200 MB/s

Max Sequential Write Speed
1,024GB, 2,048GB: 4,900 MB/s
4,096GB: 4,800 MB/s

Max Random Read Speed
1,024GB: 850,000 IOPS
2,048GB: 830,000 IOPS
4,096GB: 810,000 IOPS

Max Random Write Speed
1,024GB: 440,000 IOPS
2,048GB, 4,096GB: 450,000 IOPS

Endurance: TBW
1,024GB: 600 TB
2,048GB: 1,200 TB
4,096GB: 2,400 TB

MTTF
1.5 million hours

Operating environment / protection performance

Operating Temperature
0 ℃ (Ta) to 85 ℃ (TSMART)

Storage Temperature
-40 ℃ to 85 ℃

Certification
RoHS compliant

Shock Resistance
9.806 km/s2 {1,000 G} 0.5 ms half sine wave

Vibration
196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis

Supply Voltage
3.3 V ±5 %

Power Consumption
1,024GB:
PS3: 60 mW (typ.)
PS4: 5 mW (typ.)


2,048GB, 4,096GB:
PS3: 100 mW (typ.)
PS4: 10 mW (typ.)


Power Consumption (Active)
1,024GB: 7.7 W (typ.)
2,048GB, 4,096GB: 7.8 W (typ.)

Compatibility

Connector Type
M.2 M key Socket

Target Applications
Desktop PC and PlayStation5

Others

Services and Support
Up to 5-year manufacturer’s warranty

Performance Optimization
TRIM, Idle Time Garbage Collection, Heatsink

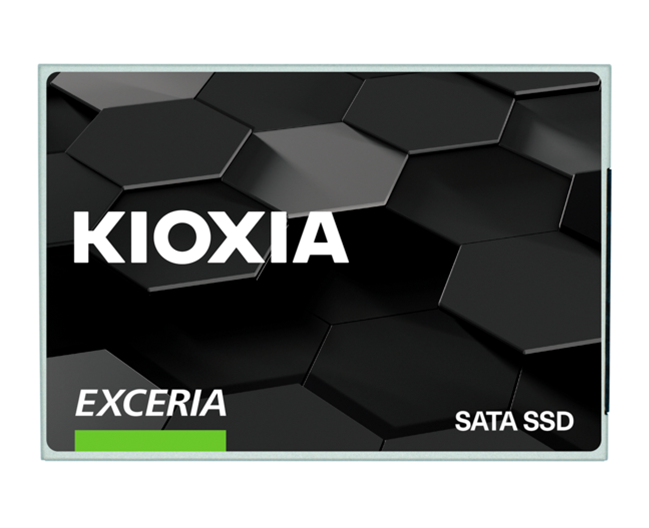

EXCERIA SATA SSD

  • Capacity: 240GB, 480GB, 960GB
  • Max Sequential Read/Write Speed: 555/540 MB/s
  • Max Random Read/Write Speed: 79,000/87,000 IOPS(240GB); 82,000/88,000 IOPS(480GB); 81,000/88,000 IOPS(960GB)
  • Usage: Client desktops and laptops

Features

  • enjoy faster boot ups, file transfers, and system responsiveness
  • balance price and performance so you have enough funds left over for other
  • offer improved durability and power consumption, which can translate into longer battery life to keep you up and running longer
  • built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience
  • SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more
Capacity / dimensions
Capacity 240GB, 480GB, 960GB
Form Factor 2.5-inch, 7mm height
Interface Serial ATA (SATA) 6 Gbit/s
Flash Memory type BiCS FLASH™ TLC
Dimension (Max: LxWxH) 100.45 x 70.10 x 7.20 mm
Weight 240GB: 45.5 g (typ.)
480GB: 45.6 g (typ.)
960GB: 45.7 g (typ.)
Performance
Max Sequential Read Speed 555 MB/s
Max Sequential Write Speed 540 MB/s
Max Random Read Speed 240GB: 79,000 IOPS
480GB: 82,000 IOPS
960GB: 81,000 IOPS
Max Random Write Speed 240GB: 87,000 IOPS
480GB, 960GB: 88,000 IOPS
Endurance: TBW (Total Bytes Written) 240GB: 60 TB
480GB: 120 TB
960GB: 240 TB
MTTF 1.5 million hours
Operating environment / protection performance
Operating Temperature 0 ℃ to 65 ℃
Storage Temperature -40 ℃ to 85 ℃
Certification RoHS compliant
Shock Resistance 14.7 km/s2 {1,500 G} 0.5 ms half sine wave
Vibration 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
Supply Voltage 5 V ± 5%
Power Consumption (Active) 240GB, 480GB: 1.6 W (typ.)
960GB: 1.7 W (typ.)
Power Consumption (Idle) 100 mW (typ.)
Power Consumption (DevSleep) 10 mW max
Compatibility
Serial ATA (SATA) ATA/ATAPI Command Set-3 (ACS-3) and Serial ATA revision 3.2 interface specifications supported
Connector Type Standard SATA Power Connector
Target Applications Client desktops and laptops
Others
Services and Support Up to 3-year manufacturer’s warranty
Performance Optimization TRIM, Idle Time Garbage Collection

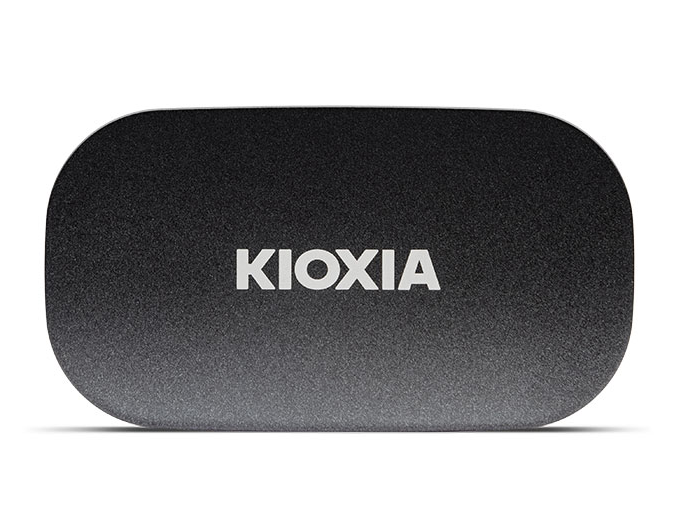

EXCERIA PLUS G2 Portable SSD

  • Capacity: 500GB, 1TB, 2TB
  • Max Sequential Read/Write Speed: 1,050/1,000 MB/s
  • Usage: Client desktops, laptops, tablets, mobile phones, and game consoles

Features

  • offers reduced size and weight that transcends pocket-sized. With a smooth, rounded aluminum housing, this portable SSD series offers compact, handy storage for users who seek out timeless design in their mobile lifestyle
  • features a slim USB Type-C® connector with a USB 3.2 Gen2 interface enabling you to quickly transfer 4K videos and high-res photos. Each EXCERIA PLUS G2 Portable SSD includes both a Type-C to A and Type-C to C cable to ensure your drive works on both current and legacy systems
  • features a shockproof housing and has no moving parts making it highly durable
  • built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience
  • enables password protection on your EXCERIA PLUS G2 Portable SSD
Capacity / dimensions
Capacity 500GB, 1TB, 2TB
Interface USB 3.2 Gen 2 / USB 3.2 Gen 1 / USB 2.0
Interface Protocol UASP mode
Dimension (Typ.: LxWxH) 72.0 x 40.0 x 11.8 mm
Weight 42.0 g (typ.)
Performance
Max Sequential Read Speed 1,050 MB/s
Max Sequential Write Speed 1,000 MB/s
Operating environment / protection performance
Operating Temperature 0 ℃ (Ta) to 45 ℃ (Ta)
Storage Temperature -40 ℃ to 85 ℃
Certification RoHS compliant
Shock Resistance MIL-STD-810H 516.8 procedure IV compliant
Vibration 3.10 Grms, 2~500 Hz, (30 min / Axis) x 3 Axis
Compatibility
Target Applications Client desktops, laptops, tablets, mobile phones, and game consoles
Compatible OS and Device Windows OS: Windows 11 Home x64, Windows 11 Pro x64, Windows 10 Home x64, Windows 10 Pro x64
macOS: macOS Big Sur 11, macOS Monterey 12, macOS Ventura 13, macOS Sonoma 14
iOS: iOS 17 for iPhone with USB Type-C® port
iPadOS: iPad OS 17 for iPad with USB Type-C® port
Android™ OS: Android 11, Android 12, Android 13, Android 14
PS4, PS4 Slim, PS4 Pro: Firmware Version 11.50
PS5: 24.04-09.40.00.08-00.00.00.0.1
Xbox Series X/S: Firmware Version 10.0.25398.4909
(As of October 16, 2024)
(Compatibility may vary and may be contingent on host device capabilities. )
Connector Type USB Type-C®
Others
Services and Support Up to 3-year manufacturer’s warranty
Included Accessories USB Type-C to A cable (300 mm)
USB Type-C to C cable (300 mm)

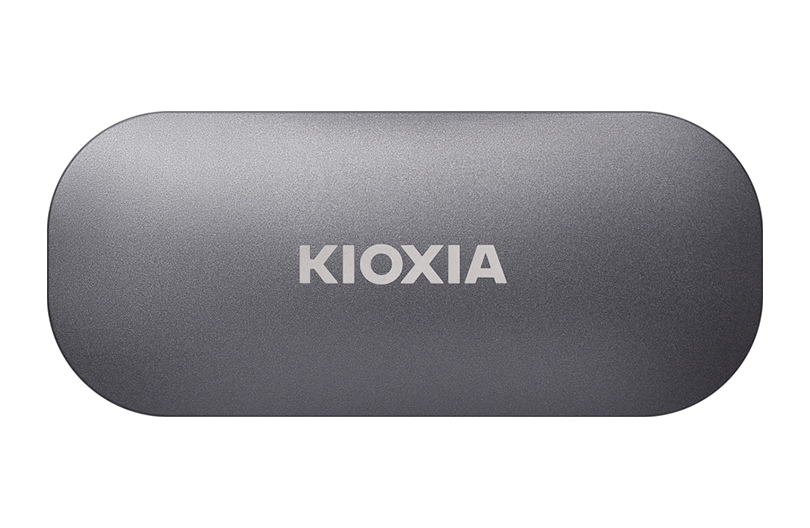

EXCERIA PLUS Portable SSD

  • Capacity: 500GB, 1TB, 2TB
  • Max Sequential Read/Write Speed: 1,050/1,000 MB/s
  • Usage: Client desktops and laptops

Features

  • offers compact, handy storage for users who seek out timeless design in their mobile lifestyle
  • features a slim USB Type-C® connector with a USB 3.2 Gen2 interface enabling you to quickly transfer 4K videos and high-res photos
  • features a shockproof housing and has no moving parts making it highly durable
  • built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience
  • enables password protection on your EXCERIA PLUS Portable SSD
Capacity / dimensions
Capacity 500GB, 1TB, 2TB
Interface USB3.2 Gen2 / USB3.2 Gen1 / USB2.0
Interface Protocol UASP mode
Dimension (Typ.: LxWxH) 105.0 x 45.0 x 14.7 mm
Weight 76.0 g (typ.)
Performance
Max Sequential Read Speed 1,050 MB/s
Max Sequential Write Speed 1,000 MB/s
Operating environment / protection performance
Operating Temperature 0 ℃ (Ta) to 45 ℃ (Ta)
Storage Temperature -40 ℃ to 85 ℃
Certification RoHS compliant
Shock Resistance MIL-STD-810H 516.8 procedure IV compliant
Vibration 3.10 Grms, 2~500 Hz, (30 min / Axis) x 3 Axis
Compatibility
Target Applications Client desktops, laptops, tablets, mobile phones, and game consoles
Compatible OS and Device Windows OS: Windows 11 Home x64, Windows 11 Pro x64, Windows 10 Home x64, Windows 10 Pro x64
macOS: macOS High Sierra 10.13, macOS Mojave 10.14, macOS Catalina 10.15, macOS Big Sur 11, macOS Monterey 12
iPadOS: iPad OS 14.6
Android™ OS: Android 11, Android 12
PS4, PS4 Slim, PS4 Pro: Firmware Version 9.51
PS5: 22.01-05.00.00.40
Xbox Series X/S: Firmware Version 10.0.22000.3832
(As of October 19, 2023)
(Compatibility may vary and may be contingent on host device capabilities. )
Connector Type USB Type-C®
Others
Services and Support Up to 3-year manufacturer’s warranty
Included Accessories USB Type-C to A cable (300mm)
USB Type-C to C cable (300mm)
Enquiry
